ESP32-S3 1.47inch LCD display Development Board, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor, ESP32 With Display
Test Sub
$9.99
Out of stock

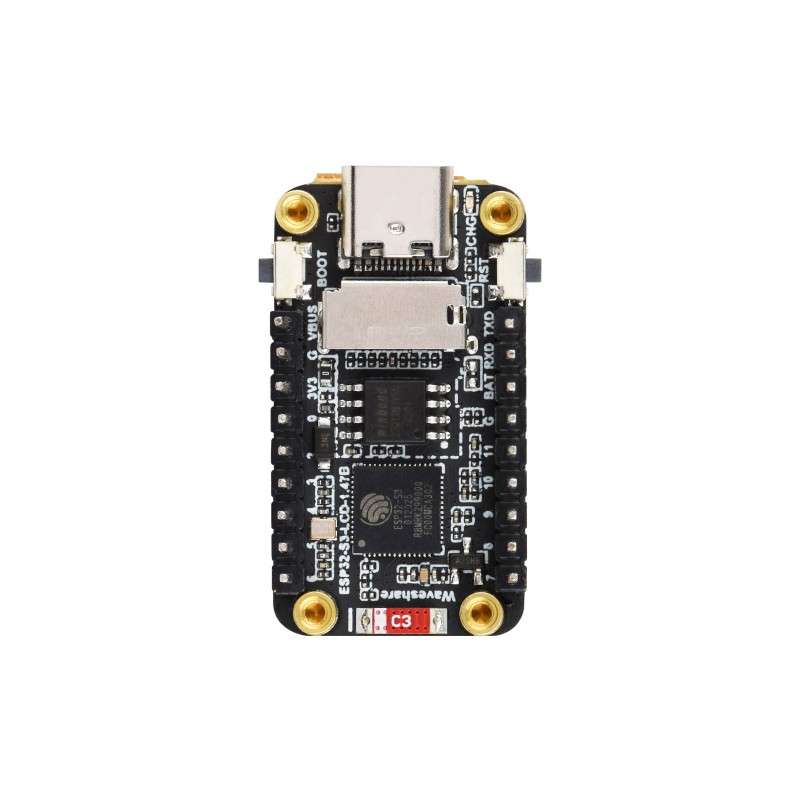

ESP32-S3-LCD-1.47B is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

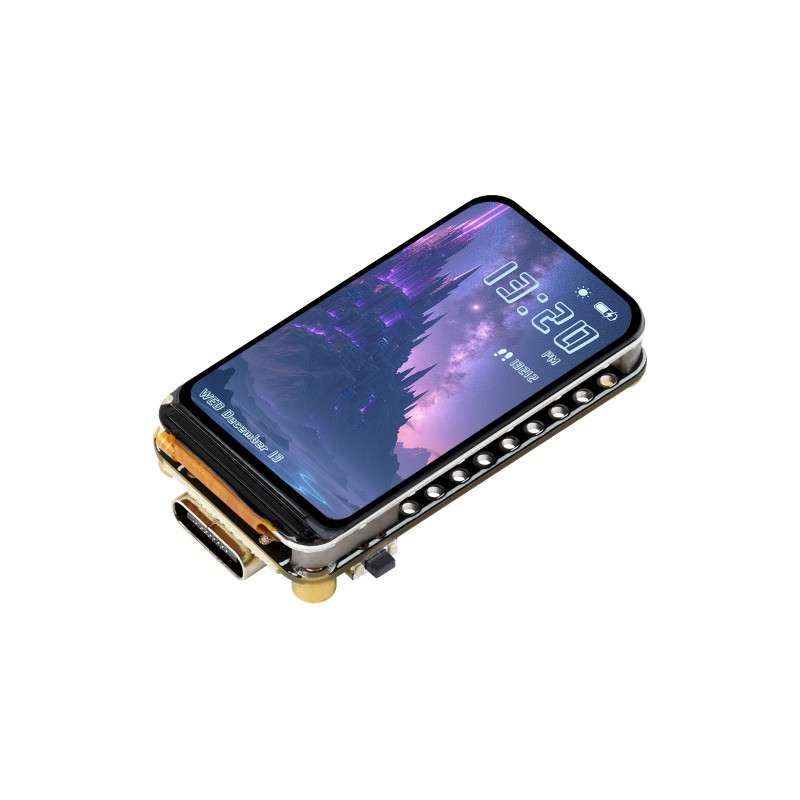

Onboard 1.47inch LCD display, 172×320 resolution, 262K color
Adapting multiple IO interfaces, supports full-speed USB standard
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc
Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects
Onboard TF card slot for external TF card storage of pictures or files
Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header)
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
