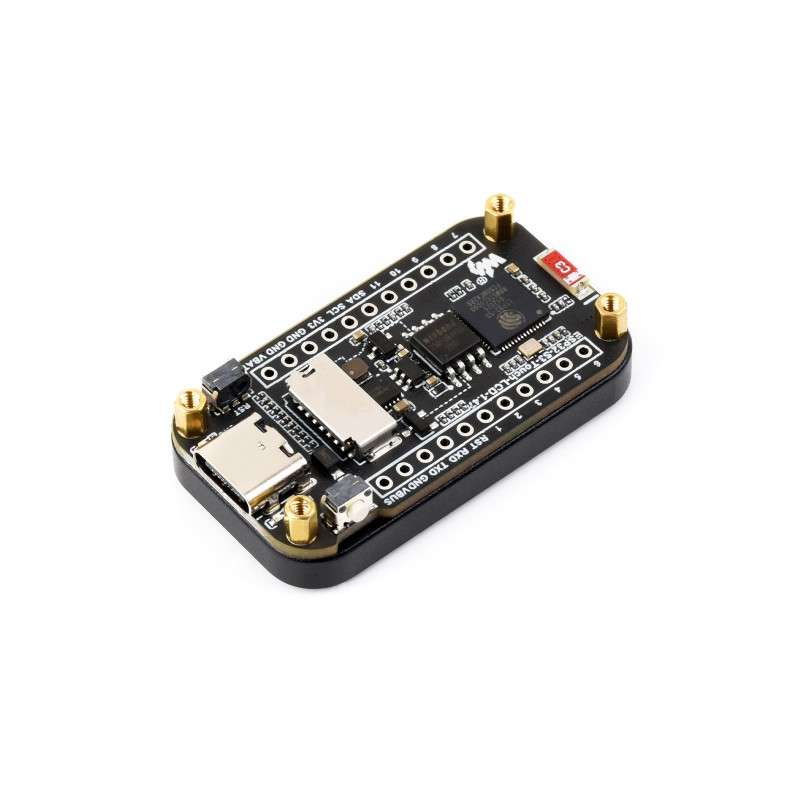

ESP32-S3 1.47inch LCD display Development Board, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor, ESP32 With Display

ESP32-S3-LCD-1.47B is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

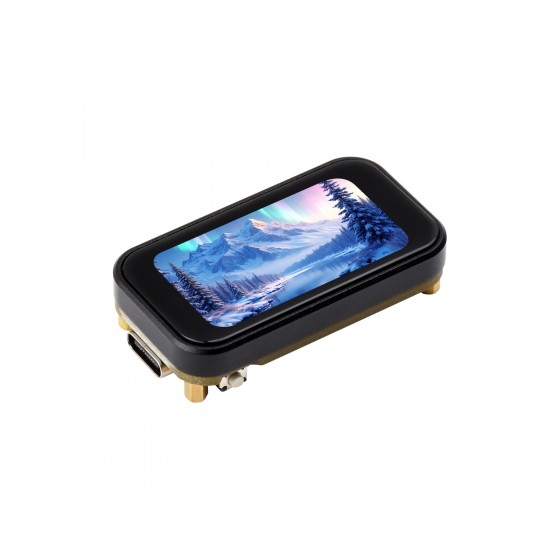

• Onboard 1.47inch LCD display, 172×320 resolution, 262K color

• Adapting multiple IO interfaces, supports full-speed USB standard

• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc

• Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects

• Onboard TF card slot for external TF card storage of pictures or files

• Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header)

• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

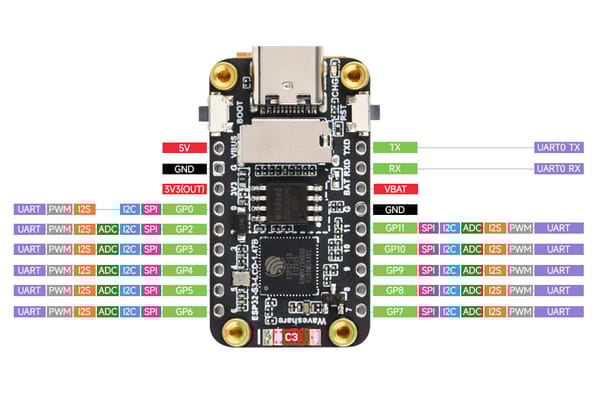

  Pin Definition

  Supports the expansion of multiple peripherals via GPIO header
